SPECIFICATIONS



1. Part Model :D107mm Neodymium Fishing /Salvage Magnet

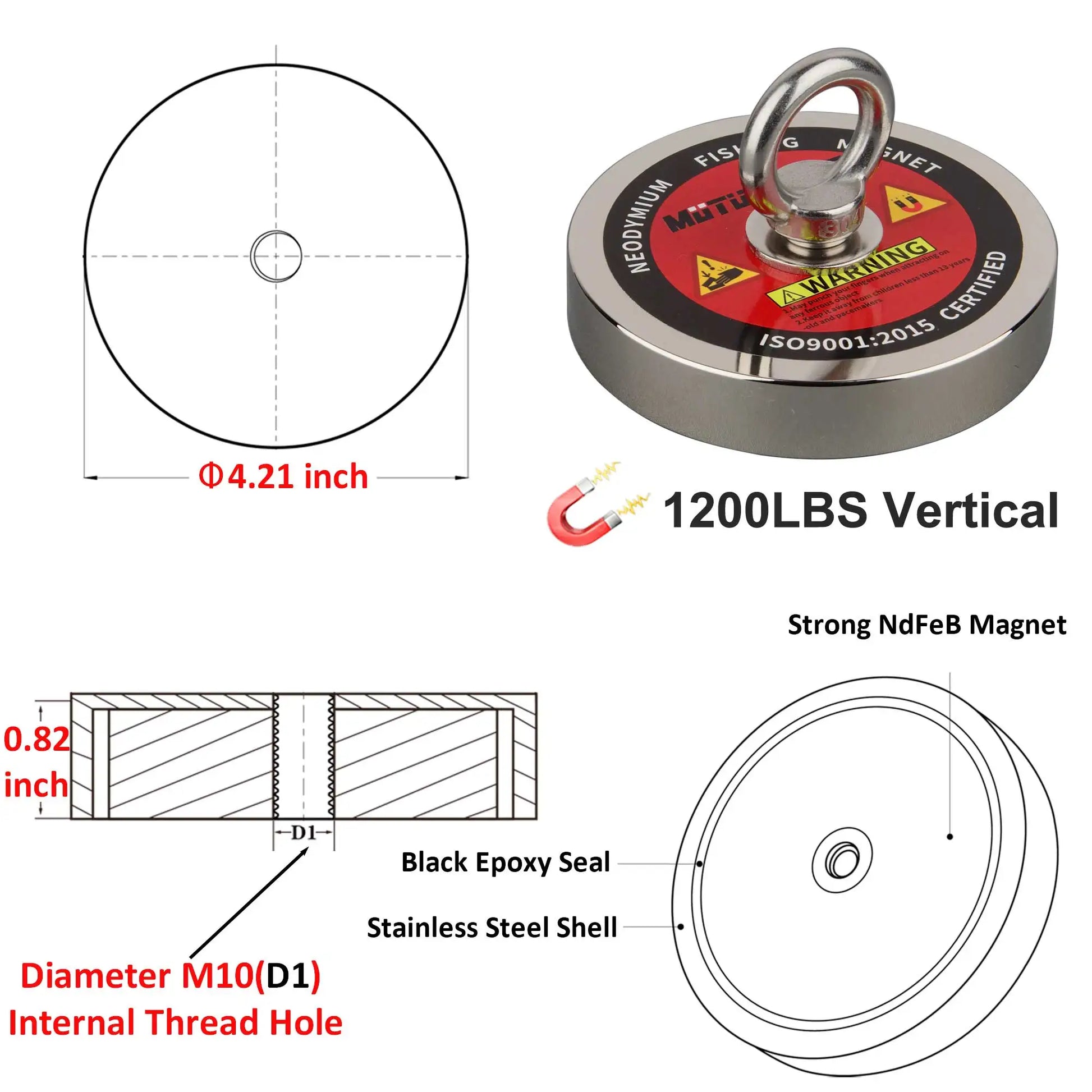

2. Material: Neodymium Magnet N45+A3 Steel+Black Resin

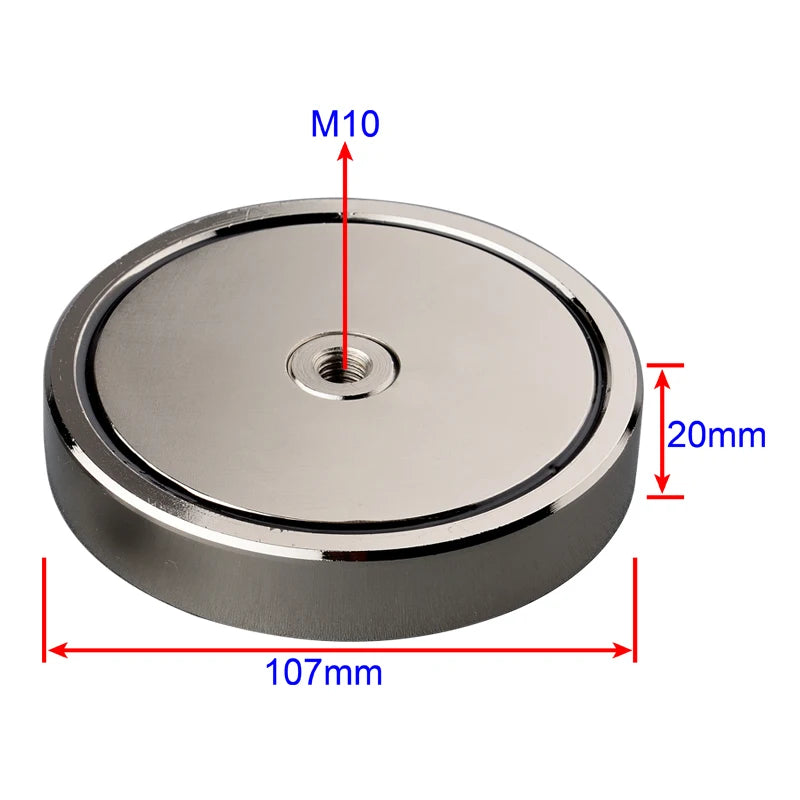

3. Size:D107mm(Diameter)*20mm(magnetic base height )

4. Coating: Both Magnet & Steel Covering are Ni+Cu+NiTriple Layer

5. Vertical Pull-force:600KG

    Horizontal Pull-force: 120KG on base of 30mm thickness Steel Plate

6.Max Working Tempearture: 80 degree centigrade









Product Description

Neodymium Fishing Magnet /SalvageMagnet

It is mainly made up of a high grade N45 neodymium magnet and a steel shell, the steel shell is crucial to amplification of magnetic force, it can concentrate the powerful magnetic field on the bottom of magnet which increase the magnetic force by2.5-4times compared to the naked magnet. At the same time, the steel cup can prevent the naked magnet from scratch and chippingduring grabbing and clamping.

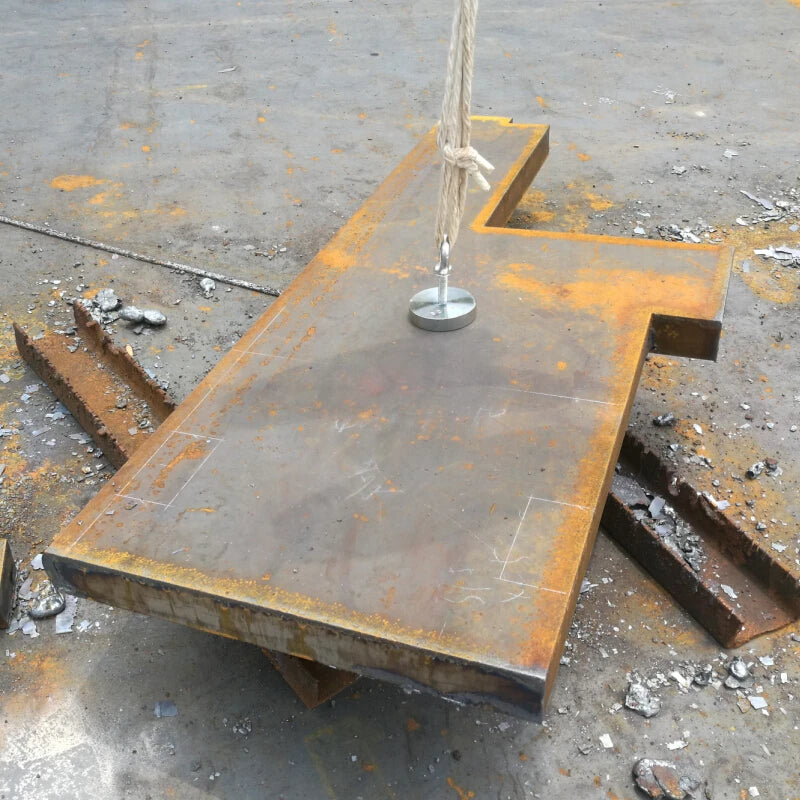

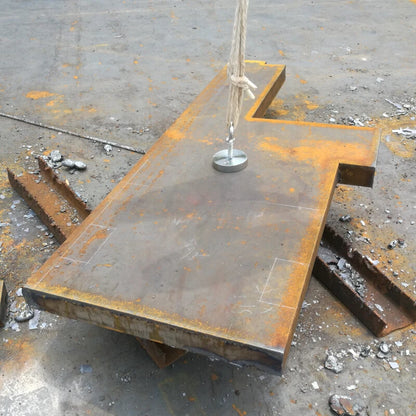

Amazing-Mag retrieving magnets are designed for heavy duty and underwater use. It can help to recover lost equipments, tools, fishing tackles and other ferrous objects in deep water, wells, holes. It is also great for magnet fishing, lifting, hanging and retrieving applications.



Product Specification





Note:

1.The magnetic pull force 600kg was tested using a computer-controlled tensile tester, it is the vertical pull-force which make the fishing magnet pull way from the steel plate 30mm thickness under ideal condition. The actual pull force will vary mainly depending on the following variables:

a: Steel thickness :The thinner the steel, the lower the pull force, 600KG vertical magnetic pull force was got on base of 30mm thickness steel Plate

b: Pulling direction :The bigger of the pulling direction beyond 90°, the lower the pull force, normally the Pull force in horizontal direction is only about one third of that in vertical direction.

c: Attracting position :The farther beyond the center of gravity, the lower the pull force.

In addition,iron chipsof magnetic surface also reduce the pull-force of magnet at some extent.

2.Magnet just only attract iron , ferrous metal and nickel,do not attract gold, silver, copper,aluminums and their alloy and stainless Steel

 3. Magnetic force concentrates on the bottom of the fishing magnet, there is hardly any magnetic forceof other surfaces .



Warnings:

1. This magnet is very powerful for their sizes and may pinch your fingers badly;

2.Keepaway from Children of all ages.

3.Do notallow magnets to jump together or onto a metal surface, Special carealways needs to be taken when handling.
